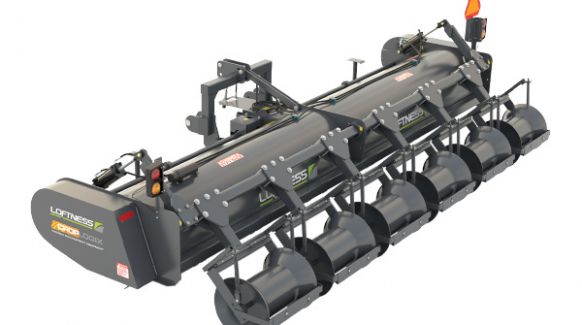

Loftness 144
Vegetable 12/24 Shredder 144
Overview:
Made for Your Beds
Specially designed bed rollers gauge the height of the cut from the top of the bed for increased accuracy. The bed rollers also help push any uncovered vegetables into the ground to reduce exposure to the sun.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Heavy-Duty Construction
The vegetable crop shredder line features heavy-duty design, engineering and construction throughout. - Ratchet or Hydraulic Rear Lift
Loftness vegetable shredders provide precise height adjustment for fine tuning performance and chop. Rear lifting choices include ratchets or hydraulic cylinders. - Specialized Bed Rollers
Specially designed bed rollers gauge the height of the cut from the top of the bed for more accurate cutting. The bed rollers also help push any uncovered vegetables into the ground to reduce exposure to the sun. Configurations for the 12/24 with bed rollers must use a fully-mounted hitch. - Contour Knives
The Vegetable 12/24 shredder comes equipped with Loftness contour knives. There are three lengths of knives to follow ridges. Contour knives are available for 34-, 36-, 38-, 40-, 42- and 44-inch beds. - 280-Horsepower Rated Gearbox
A standard feature on all Loftness shredder equipment, this field-proven and extremely reliable gearbox is rated at 280 HP. It turns the rotor at 1,450 RPM. - 1,000 RPM PTO
Available with a 1-3/8-inch or 1-3/4-inch 1,000 RPM power takeoff. Includes over-running clutch on all models and constant velocity knuckle on all pull-types. Slip clutch is optional for extreme-duty applications. - Multiple Mounting Configurations
The vegetable shredders can be configured as pull-type, semi- or fully-mounted models. - 4- or 6-Groove Banded Belt
Efficient transfer of power via a four- or six-groove banded belt and spring loaded push-type idler system. - 1-3/4″ Driveline Bearings
A heavy-duty 1-3/4-inch American-made ball bearing is used to support the line shaft midway between the gearbox and end plate. - Optional Transport System
A transport system can be added to vegetable shredders with wheels. - Adjustable Rear Wheel Options
Specifications
| Size | 12' |
| Model | 144 |
| Fully-mounted Height | 48" |
| Fully-mounted Length | 98" |
| Cutting Width | 144" |
| Overall Width | 163" |
| Hitch Length | 12" |
| Weight in Pounds | 4000 |
| Number of Rotors | 2 |
| Number of Knives on 30" Bed (Contour Knives) |
Call For Specs |
| Number of Knives on 32" Bed (Contour Knives) |
6" - 24 8" - 16 10" - 24 |
| Number of Knives on 34" Bed (Contour Knives) |
6" - 24 8" - 16 10" - 24 |
| Number of Knives on 36" Bed (Contour Knives) |
6" - 24 8" - 16 10" - 24 |
| Number of Knives on 38" Bed (Contour Knives) |
Call For Specs |
| Number of Knives on 40" Bed (Contour Knives) |
Call For Specs |
| Number of Knives on 42" Bed (Contour Knives) |
Call For Specs |
| Number of Knives on 44" Bed (Contour Knives) |
Call For Specs |
| Number of Knives on 46" Bed (Contour Knives) |
Call For Specs |
| Number of Knives on 48" Bed (Contour Knives) |
Call For Specs |
