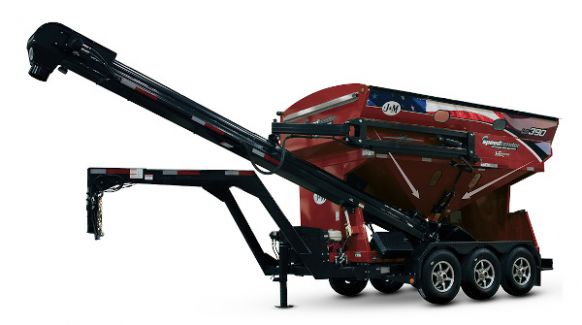

J&M Manufacturing LC390
LC Series Speed Tenders LC390
Overview:
Self-Filling Luxury Bulk Tenders with Premium Controls and Round Belt Conveyor
Our premium "LC Series" self-filling bulk tender design offers a Larger Capacity tank, Luxury Controls, Lower Center of Gravity and Longer Conveyor compared to competitor models. These features allow you to carry more seed with a lower ce... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Patented Support Arm Design
The patented design supports the conveyor from the top, providing better balance and making it easier for one person to rotate from the unload to self‐fill positions. Supporting the conveyor from the top rather than underneath also allows the tank to be designed with a lower center of gravity for greater stability during transport.
Glide Right Roll Tarp
Smoother Tracking
Grooved rollers glide along the end caps for ultimate tracking, reducing the chances of misalignment.
Reduced Binding
Front and rear return springs apply even tension to reduce binding compared to systems that use a single return spring.
Easy Glide Axle System
The triple-axle undercarriage features an Easy‐Glide Axle System with the center axle positioned slightly lower, making it easier to turn and maneuver.
On-Board Controller
The on-board controller provides a secondary control option for both the standard wired and optional wireless units in case the batteries fail, the remote is misplaced or a cord is damaged. The on-board controller, which includes controls for the optional talc applicator, can be used in conjunction with the current controls, allowing the operator to switch back and forth seamlessly. Units with the Intercomp scale and wireless control have the on‐board control built into the same monitor.
Easy Glide Axle System
The triple-axle undercarriage features an Easy‐Glide Axle System with the center axle positioned slightly lower, making it easier to turn and maneuver.
On-Board Controller
The on-board controller provides a secondary control option for both the standard wired and optional wireless units in case the batteries fail, the remote is misplaced or a cord is damaged. The on-board controller, which includes controls for the optional talc applicator, can be used in conjunction with the current controls, allowing the operator to switch back and forth seamlessly. Units with the Intercomp scale and wireless control have the on‐board control built into the same monitor.
Four Function Remote
Four function standard wired remote controls:
- Starts/Stops Conveyor
- Raises/Lowers Conveyor
- Opens/Closes Doors
- Swings Conveyor Side‐to‐Side
Miscellaneous Standard Features
- 13 hp electric start engine
- LED work lights for night time unloading
- Divided hopper for quick and easy variety changes
Specifications
| Model | LC 390 |
| Capacity | 390 Seed Units 390 Cubic Feet |
| Weight (Empty) | 7,500 lbs |
| Tongue Weight (Loaded) | 1,380 lbs 1,453 lbs (Gooseneck) |
| Conveyor | 22' Long 8" Tube Conveyor |
| Unload Rate | 30 bu/min |
| Conveyor Reach (with telescoping spout) |
49' (front to rear swing) |
| Axles | Three (3) 7,000 lb Torsion-Flex Axles or Two (2) 10,000 lb Torsion-Flex Axles |
| Electric Brakes | Yes |
| Engine | 13 hp Honda Motor with Electric Start |
Measured with soybeans at 140,000 seeds per unit weighing 45 lbs.
