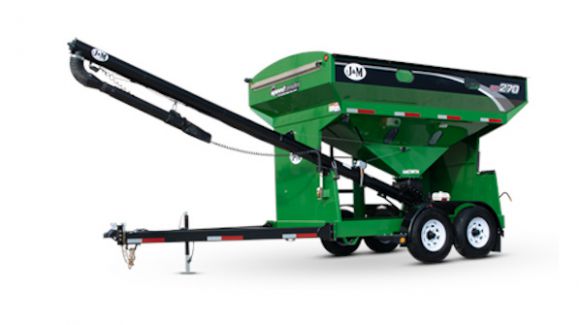

J&M Manufacturing EC270

Double tap to zoom



Features

Echo Dispense System

All other economy units use a linear actuator, so the operator has to hold the INCREASE throttle button to unload and DECREASE throttle button to stop. This can be extremely difficult to dispense seed accurately, especially with a row planter.

With J&M's Echo Dispense System, a single button automatically increases the throttle to the desired speed, ensuring greater accuracy. After the first box has been filled, simply press the "Echo" button to mimic the timing and easily fill the rest of the boxes consistently and evenly.
Compatible with our Talc Applicator.

Glide Right Roll Tarp

Smoother Rolling, Reduced Binding and Ultimate Tracking
The patent-pending roll tarp design features grooved rollers that roll along the edge of the end caps for consistent tracking and reduced misalignment. Front and rear return springs apply even tension to each end of the tarp to reduce binding and prevent uneven rolling compared to designs that only utilize one spring and cable assembly.

More Standard Features:

  • 4.8 hp Honda electric start engine
  • Two 7,000 lbs suspension axles with 235/85R16 tires
  • Divided hopper for quick and easy variety changes

Specifications

SPECIFICATIONS EC 270
Capacity (total)* 270 Seed Units
270 Cubic Feet
Weight (empty) 4,400 lbs.
Tongue Wt. (loaded) 1,086 lbs.
Auger 19' Long, 7" Diameter
Auger Reach 44' Front to Rear Swing
with Telescoping Spout
Axles Two (2), 7,000 lb. Torsion-Flex
Axles
Electric Brakes Yes
Engine 4.8 HP Honda Motor w/Electric Start
*Measured with soy beans at 140,000 seeds per unit weighing 45 lbs.
