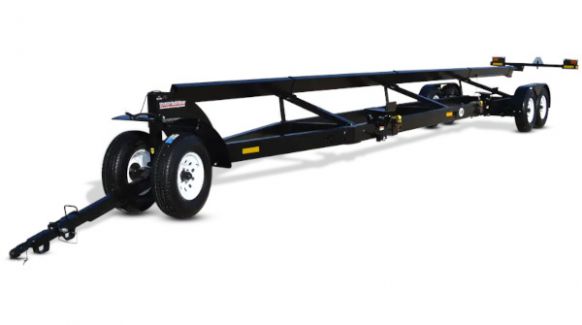

J&M Manufacturing TB-6000
Trail-Blazer Series TB-6000
Overview:
Built with a stronger arched main frame, Trail-Blazer Models TB-6000 and TB-7000 header transports carry the heaviest heads quickly and easily.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 4"×8" Prestressed arched main frame
- 4"×8" steel upper bar
- Tricycle front steering axle
- Rear torsion-flex suspension axles
- Highway speed rated tires
- 4-wheel rear electric brakes
- Front and rear fenders
- Light package with SMV
- Ball hitch
- Breakaway brake kit
- Safety chain
- Tie-down brackets
- Adjustable header mounts
Specifications
| Model | TB-6000 |
| Weight | 3,500 lbs. |
| Capacity (Net) | 20,500 lbs (Ag) 18,300 lbs (Highway) |
| Frnt Axle Spindle Size | Two 2 1/4" Diameter |
| Rear Axles Spindle Size | Four 2 1/2" Diameter |
| Wheel Size | 16"x6" - 6 Bolt |
| Tire Size | 235/85R16E |
| Steel Upper Bar | 4"x8" |
| Upper Bar Length | 32', 38', 42' or 48' |
| Arched Main Frame | 4"x8"x1/4" Tubing |
| Rear Electric Brakes | Optional on Ag Standard on Highway |
