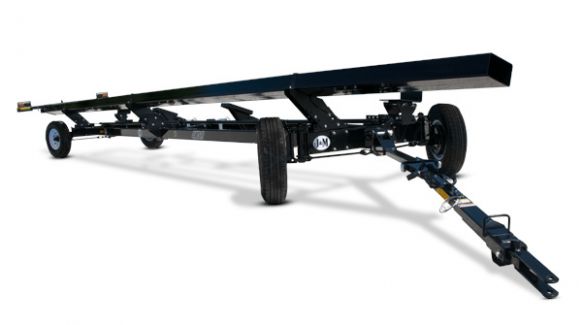

J&M Manufacturing 4WS18‑HD‑38
4-Wheel Steer Series 4WS18‑HD‑38
Overview:
Transports John Deere HD and RD Heads
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
John Deere HD and RD Draper Heads
Specifically designed for the John Deere HD draper heads, the 4WS15-HD, 4WS17-HD & 4WS18-HD header transports use a 4” x 8” steel upper bar and more saddles to support the multiple header sections. The hinged tongue prevents the header transport tongue from damaging the gauge wheel on the header and allows the operator to transport the header without removing the gauge wheel.
4WS15-HD, 4WS17-HD or 4WS18-HD John Deere HD Draper Heads
- 15’, 17’ or 18’ Turning Radius
- 86" Center Tread Width
- 8 Hole Hub
- 38' (4WS18-HD), 42' (4WS15-HD), 48' (4WS17-HD), or 52' (4WS18-HD) Steel Upper Bar
- 4"×8" Upper Bar
- Quick Hitch Tongue with Spring Assist
- Adjustable Mounts
- Patented Tie-Down Brackets with Hook and Strap Assembly
- Light Package
- Hinged Tongue
- 16"×6" or 17½"×6¾" Wheels and 235/85R16F or 215/75R17.5H Tires
Specifications
| SPECIFICATIONS | Transports John Deere HD and RD Heads |
| MODEL | 4WS18‑HD‑38 |
| Weight | 4,3905 lbs |
| Capacity (Net) | 13,000 lbs |
| Spindle Size | 2" Diameter |
| Wheel Size | 16"×6"-8 Bolt |
| Tire Size | 235/85R16F |
| Steel Upper Bar | 4"×8" |
| Upper Bar Length | 38' |
| Box Channel Axle Frame | 8" |
| DIMENSIONS | Transports John Deere HD and RD Heads |
| 4WS18‑HD‑38 | |
| A | 13'-4" |
| B | 40'-2" |
| C | 7'-2" |
| D | 52'-6" |
| E | 34'-0" |
