J&M Manufacturing 4WS15-42

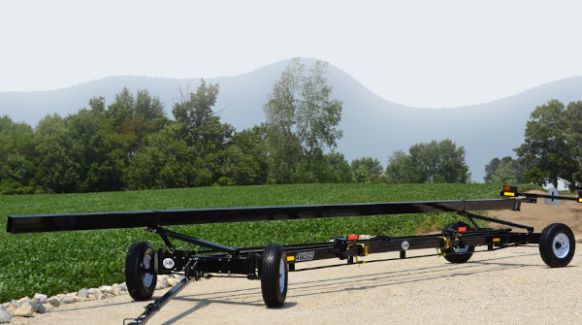

4-Wheel Steer Series 4WS15-42
Overview:
4-Wheel Steer Series transports are built low for more clearance and use heavy duty components and a 4-Wheel Steer design for a sharper turning radius to help you through the tightest turns with less stress.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Arched Lower Beam
An arched lower beam with trussed understructure provides maximum support for large, heavy heads.
Additional Center Support
A support in the center of the transport improves alignment of front and rear axles and strengthens the upper bar for greater load capacity.
4WS15
- 15' Turning Radius
- 82" Center Tread Width
- 8 Hole Hub
- 32', 38', or 42' Steel Upper Bar
- Quick Hitch Tongue with Spring Assist
- Adjustable Mounts
- Patented Tie-Down Brackets with Hook and Strap Assembly
- Light Package
- 16"×6" Wheels and 235/85R16E Tires
Specifications
| Model | 4WS15-42 |
| Weight | 3,380 lbs. |
| Capacity (Net) | 12,640 lbs. |
| Spindle Size | 2" Diameter |
| Wheel Size | 16"x6" - 8 Bolt |
| Tire Size | 235/85R16E |
| Steel Upper Bar | 4"x8" |
| Upper Bar Length | 42' |
| Box Channel Axle Frame | 8" |
