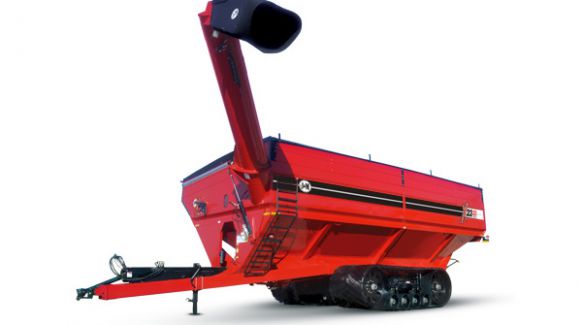

J&M Manufacturing 2032

Double tap to zoom



Features

V-Truss Axle

Added Strength Prevents Twisting or Bending

Competitor grain cart axles feature small tubular steel that is prone to bending or I-beam designs that are prone to twisting, which puts premature stress on the rest of the cart. J&M’s exclusive V-Truss axles are engineered using heavy-duty tubular steel with a reinforced V-Truss design to resist both bending and twisting, protecting the cart from premature wear and tear. Standard on all single wheel carts.

Heavy-Duty Tube Axle

Maximum Shear and Bending Strength

The axle for track carts is constructed with 12"×12"×½" (36" track) or 12"×12"×⅝"(46" track) thick tubing for maximum shear and bending strength, capable of withstanding the heaviest loads under the most extreme conditions.

Miscellaneous Standard Features

  • Patented Side-Shooter spout design
  • Easy access side mounted inspection ladder
  • Unique auger rest lever design for easy transition between storage and field positions
  • Over-running, automatic cut-out clutch for maximum durability
  • Heavy-duty jack stand assembly
  • Graphite-coated interior for efficient unload and excellent cleanout
  • Hydraulic hose and electric cable organizer
  • Bolt-on bottom tang hitch
  • Balanced tongue weight

Specifications

Model 2032
Vertical Auger 22"
Horizontal Auger 20"
Unload Time (bu/min) 810+
Tracks Option
Capacity 1,970 Bushels
Total Weight (approx.) 33,176 lbs
Compaction Rate
V4LT
V4
36" Stabilizer Trax2
46" Stabilizer Trax2



15.7 psi
12.3 psi
