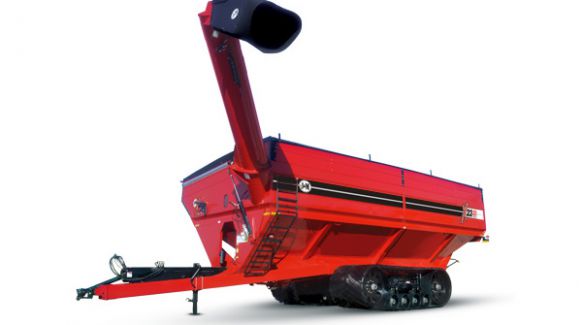

J&M Manufacturing 1132

Double tap to zoom



Features

V-Truss Axle

Added Strength Prevents Twisting or Bending

Competitor grain cart axles feature small tubular steel that is prone to bending or I-beam designs that are prone to twisting, which puts premature stress on the rest of the cart. J&M’s exclusive V-Truss axles are engineered using heavy-duty tubular steel with a reinforced V-Truss design to resist both bending and twisting, protecting the cart from premature wear and tear. Standard on all single wheel carts.

Heavy-Duty Tube Axle

Maximum Shear and Bending Strength

The axle for track carts is constructed with 12"×12"×½" (36" track) or 12"×12"×⅝"(46" track) thick tubing for maximum shear and bending strength, capable of withstanding the heaviest loads under the most extreme conditions.

Miscellaneous Standard Features

  • Patented Side-Shooter spout design
  • Easy access side mounted inspection ladder
  • Unique auger rest lever design for easy transition between storage and field positions
  • Over-running, automatic cut-out clutch for maximum durability
  • Heavy-duty jack stand assembly
  • Graphite-coated interior for efficient unload and excellent cleanout
  • Hydraulic hose and electric cable organizer
  • Bolt-on bottom tang hitch
  • Balanced tongue weight

Specifications

Model 1132
Vertical Auger 22"
Horizontal Auger 20"
Unload Time (bu/min) 740+
Single Wheels Option
Capacity 1,150 Bushels
Wheels (2) 30×32,
32×36 or
44×32
Tires (2) IF900/60R32,
1050/50R32 or
IF1250/50R32
Hubs (2) 10 Bolt or 20 Bolt
Spindles (2) 6" Diameter
Tongue Weight
 Empty 2,600 lbs
 Loaded 3,800 lbs
Total Weight (approx.) 15,649 lbs
Walking Tandem Dual Wheels Option
Capacity 1,125 Bushels
Wheels (4) 16x42, 18x42
Tires (4) 480/80R42 or
520/85R42
Spindles (4) 4½" Diameter
Total Weight (approx.) 19,121 lbs.
Tracks Option
Capacity 1,175 Bushels
Total Weight (approx.) 23,761 lbs
Compaction Rate
V4LT
V4
36" Stabilizer Trax2
46" Stabilizer Trax2

15.4 psi
11.0 psi
10.2 psi
8.1 psi
