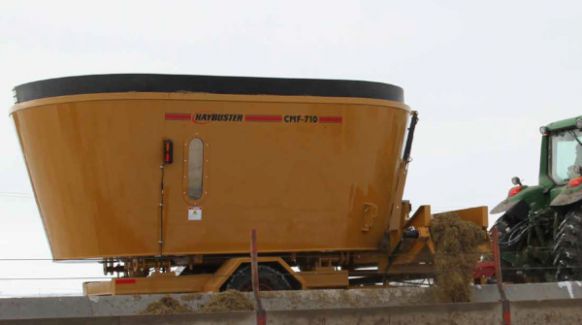

The 710 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.

They also mix materials like distillers, silage, corn and more.

Mixing Capacity

The CMF-710 has a 710-cu. ft. mixing capacity.

Adjustable Vertical Knives

Adjustable vertical knives for more aggressive cutting.

Observation Windows

The CMP-710 has observation windows on the right and left sides of the machine.

Large 30 Inch by 40 Inch Unloading Door

Large 30 inch by 40 inch unloading door for fast even unloading and cleaning.

Versatile 36 in. Wide Cross and Unloading Conveyor

The CMF-710 equipped with a 36-inch-wide hydraulic chain/slat unloading conveyor featuring:

• cross conveyor only with right- or left-hand drives
• cross conveyor with spouts or endgates. Magnets are available for the spouts.
• cross conveyor with hydraulic conveyor extension. Available in right hand, left hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at one time. Spouts and optional magnets are also available.

76” Heavy-Duty Twin Augers w/ 7 Knives per Auger

Heavy-duty 76-inch twin screw augers, with self-sharpening serrated knives, driven by 2 HD USA gearboxes that are covered by a two-year warranty.

Digi-Star 4pt Scale with Choice of Optional Digi-Star Monitors

A CMF-710 equipped with the standard Digi-Star 4pt. scale and EZ 3500 V monitor. All other Digi-Star monitors and scale heads are available. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feeding programs are also available.

Free Motion Clutches on Driveline

Free motion clutches on driveline protect the heavy duty gearboxes. Gearboxes come with a two-year warranty. The optional two-speed gearbox is used for loaded startups and heavy rations.

4-Point Scale

4-point scale for accurate weighing, with reduced scale bounce during loading and feeding.

Oscillating Heavy-Duty Axles

Oscillating heavy-duty axles with 4) 315/80 R 22.5 20 ply rated tires provide even weight distribution on uneven and frozen ground.

Heavy Duty Frame

The CMF-710 is built with a heavy-duty 6” x 9” x ¼” steel tube frame for strength and longevity.

Optional Magnets on Chutes

Discharge magnets on the discharge chutes removes metal, such as bale wire, from feed, providing the highest quality feed available.

Dogleg Conveyor

Optional Dogleg Conveyor Available.

CV PTO or Optional 2-Speed Gear Box

The CMF-710 comes equipped with either a heavy-duty constant velocity PTO or an optional 2-speed gear box. The two speed gearbox is used for loaded startups and heavy rotations.
