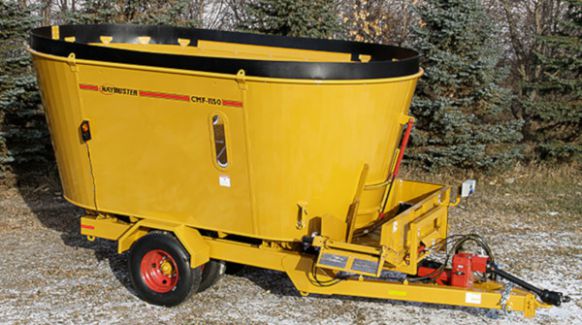

The 1150 is part of our CMF series of vertical mixers that cut materials like hay, straw and corn stocks.

They also mix materials like distillers, silage, corn and more.

Mixing Capacity

The CMF-1150 has a 1150-cu. ft. mixing capacity.

Adjustable Vertical Knives

Adjustable vertical knives for more aggressive cutting.

Observation Windows

The CMP-1150 has observation windows on the right and left sides of the machine. Standard safety equipment on each machine includes road lights and SMV decals.

Large 30 Inch by 24 Inch Unloading Door

Large 30 inch by 42 inch unloading door for fast even unloading and cleaning.

Versatile 36” Wide Cross and Unloading Conveyor

The CMF-1150 equipped with a 36-inch-wide hydraulic chain/slat unloading conveyor featuring:

• cross conveyor only with right- or left-hand drives
• cross conveyor with spouts or endgates. Magnets are available for the spouts.
• cross conveyor with 3 ft. hydraulic conveyor extension. Available in right hand, left hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at one time. Spouts and optional magnets are also available.
• 26-5/8 in to 55 in discharge height.

88” Heavy-Duty Twin Augers with 9 Knives Per Auger

Heavy-duty 88-inch twin screw augers, with 18-1/4” self-sharpening serrated knives, driven by 2 HD USA gearboxes that are covered by a two-year warranty.

Digi-Star 4pt Scale with Choice of Optional Digi-Star Monitors

All Digi-Star monitors and scale heads are available with the CMF-1150. The Digi-Star system is powered by a standard onboard 12-volt battery. Digi-Star feeding programs are also available.

Free Motion Clutches on Driveline

Free motion clutches on driveline protect the heavy duty gearboxes. Gearboxes come with a two-year warranty. The optional two-speed gearbox is used for loaded startups and heavy rations.

4-Point Scale

4-point scale for accurate weighing, with reduced scale bounce during loading and feeding.

Heavy-Duty Oscillating Axles

Oscillating heavy-duty axles with 4) 385/65 R 22.5 20 ply tires provide even weight distribution on uneven and frozen ground.

Heavy Duty Frame

• The CMF-980 is built with a heavy-duty 6” x 10” x 3/8” steel tube frame for strength and longevity.
• Onboard 12 Volt Battery
• The Digi-Star system is powered by a standard onboard 12 volt battery.

CV PTO or Optional 2-Speed Gear Box

• The CMF-980 comes equipped with either a heavy-duty 1-3/4” constant velocity (1,000 RPM) PTO or an optional 2-speed gearbox. The two speed gearbox is used for loaded startups and heavy rotations.
• 24” Steel Wall Liner
• 24” (60.9 cm) replaceable steel wall liner on the inside lower portion of the sidewalls.

Dogleg Conveyor

Optional Dogleg Conveyor Available.

24” Steel Wall Liner

24-inch (60.9 cm) replaceable steel wall liner on the inside lower portion of the sidewalls.

Onboard 12 Volt Battery

The Digi-Star system is powered by a standard onboard 12 volt battery.

Standard Features

MIXING CAPACITY: The CMF-980 has a 980 cu. ft. mixing capacity with a tare weight of 30,900 lbs

UNLOADING DOOR: Large 24” x 42” unloading door for fast, even unloading and clean-out.

AUGERS: Heavy-duty 88” screw augers with self-sharpening serrated knives, driven by 2 HD USA gearboxes.

OSCILLATING AXLES: Oscillating Heavy Duty Axles with 4) 385/65 R 22 20- ply rated tires provide even weight distribution on uneven or frozen ground.

HEAVY-DUTY FRAME: The CMF-980 is built with a heavy-duty 6” x 10” x 3/8” steel tube frame for strength and durability

CV PTO WITH 2-SPEED GEAR BOX: The CMF-980 comes equipped with a heavy-duty 1 ¾” constant velocity 1000 rpm PTO with a 2-speed gearbox. The 2-speed gearbox is needed for loaded startups and heavy rations.

Optional Features

Unloading Options
Cross Conveyor only with right- or left-hand drives.

Cross Conveyor with spouts or endgates. Magnets are available for the spouts.

Cross Conveyor with hydraulic conveyor extension. Available in right-hand, left-hand, or both right- and left-hand unload. The dual discharge unit can only unload from one side at a time. Spouts and optional magnets are also available.

Dogleg style conveyor also available

Magnets on discharge spouts
Magnets on the spouts remove ferrous metal, such as bale wire, from feed, providing the highest quality feed available.

Rear discharge door
The optional rear discharge door provides an additional means of discharging feed.

2-Speed Gear Box
The 2-speed gear box is used for heavy starts after transporting heavy rations to protect the tractor PTO and mixers drive train.

Digi-Star Scale
Choose from any Digi-Star scale indicator Also available are optional Digi-Star Feed Management Programs
