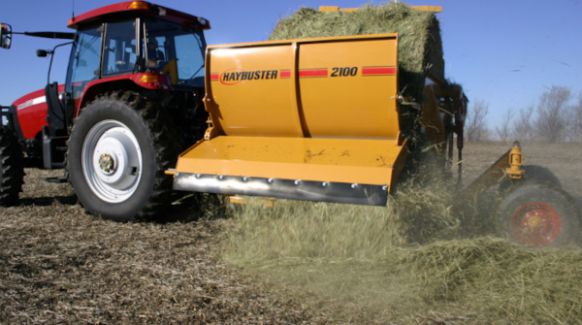

HayBuster 2100 Balebuster
Bale Processors 2100 Balebuster
Overview:
The original bale processor from Haybuster. Feed, spread mulch, and get the job done with this model.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
The 2100 has been an excellent erosion control tool for road sides and mining.
It is a single bale loader machine that provides solutions for:
- Range feeding
- Bedding
- Odor control on wastewater lagoons
- bunk feeding
- Erosion control
Semi-Mounted
The 2100 Balebuster is semi-mounted, making it easy to maneuver and back into tight places. This semi-mounted unit transfers approximately 55% of the 2100’s operating weight directly to the tractor, keeping the weight off the Balebuster.
Heavy Duty Loader
This machine is self-loading, and it only requires one person to operate.
Shredder Chamber
The Shredder Chamber has a 3-chain slatted conveyor that provides the needed traction to handle all round bales: hard or soft core. The chamber is 15% larger than previous models, reducing spillage and making hay and straw placement much easier. It processes hay into usable rations, making your hay go farther and reducing your costs.
Heavy Duty Offset Rotors, Flails, & Clearance
This unit’s heavy-duty offset rotor, flails, and reduced flair tip clearance work together to throw straw further and process both dry and wet bales.
Spreads Straw up to 40 Feet
As a primary concern for farmers, preventing accelerated soil erosion and minimizing sedimentation. The 2100 Balebuster is the perfect solution for excellent erosion control.
Wide Spread Caster Wheels
The 2100’s strong caster wheels and large 9.5x14 8-ply tires combine to easily navigate over boggy ground and rough terrain. They also provide additional stability and ease of backing.
Easily Adjustable Deflector
This bale processor is equipped with a variable position deflector that is easily adjustable.
Standard Features
- Tractor Semi Mounted, for easy maneuvering & positioning of straw.
- Rear caster wheels to support weight of machine and bale.
- Heavy-duty loader for easy bale loading. Just back into bale, hydraulically roll shredder frame which loads the bale.
- Heavy-duty chain conveyor with more durable chain and heavier drive shafts.
- 1000 RPM drive that can throw straw up to 40 feet.
- Easily adjustable deflector for feeding or bedding.
Optional Features
- Stripper channel kits
- Category II/III Quick-Tach Hitch
- Wide Deflector Belt
Specifications
| MODEL | 2100 Balebuster (Semi-Mounted Round Bale Processor) |
| WEIGHT | - |
| Total | 3,700 lbs. (1,678 kg) |
| SHIPPING DIMENSIONS | - |
| Width | 8 ft. 5 in. (2.6 m) loader & deflector folded. |
| Length | 12 ft. 9 in. (4.01 m) |
| Length | 8 ft. 5 in. (2.6 m) caster wheels removed. |
| Height | 6 ft. 5 in. (1.96 m) loader folded. |
| TRANSPORT DIMENSIONS | - |
| Width | 10 ft. 8 in. (3.25 m) |
| Length | 12 ft. 9 in. (4.01 m) |
| Height | 6 ft. 5 in. (1.96 m) loader folded |
| WORKING DIMENSIONS (WITH BALE) | - |
| Width | 13 ft. (3.96 m) |
| Length | 12 ft. 9 in. (4.01 m) |
| Height | 9 ft. 8-3/4 in. (3.05 m) |
| CHASSIS FEATURES | - |
| Hitch | Semi-Mounted, attaches to lower Lift Links of Tractor's 3-PT Hitch |
| Tires | (2) 9.5 x 14 - 8-Ply |
| Wheels | (2) 6 x 14 - 5 Bolt Drop Center |
| Bearings | Tapered Roller |
| Axle | Caster |
| BALE LOADER | - |
| Type | Hydraulic With Mechanical Linkage |
| Bale Tines | (2) Fixed Width |
| Hydraulic Cylinder | (2) 2 ½” x 16” (6.35 cm x 40.64 cm) Double Acting |
| BALE CONVEYOR | - |
| Type | 3 Roller Chains with Bolt-on Cross Slats |
| Drive | Hydraulic Motor with Hydraulic Flow Control |
| BALE SHREDDER CHAMBER | - |
| Max. Bale Size | 6’ long x 6 ½’ Dia. (1.83 m x 1.98 m) |
| Max. Bale Weight | 2,000 lbs (1000 kg) |
| Rotor Length | 78 in. (1.83 m) |
| Rotor Diameter (Flails extended) | 25" (64.77 cm) |
| Rotor Bearing | Ball, 1-3/4 in. (4.44 cm) |
| Number of Flails | 30 |
| Flail Type | Heavy Duty Flails, 7/16 in. (11.11 mm) Thick, 3 lbs. (1.36 kg), Heat Treated Spring Steel, Swinging |
| Number of Stripper Plates | 1 |
| Number of Slug Bars | 5 |
| Deflector Shield | 6 Adjustment Positions through 120° range |
| Max. Horizontal Spread | Straw up to 50 ft. |
| OPERATOR CONTROLS | - |
| Loader | 1 set of Tractor Hydraulic Outlets |
| Bale Conveyor | 1 set of Tractor Hydraulic Outlets |
| Bale Conveyor Speed | Adjustable Hydraulic Flow Control Valve |
| Slug Bar | Shim adjustable |
| Deflector Shield Position | Hand Lever with Position Settings Through 120° range |
| REQUIREMENTS FOR OPERATION TRACTOR | - |
| PTO Horsepower required | 65 to 155 |
| hree Point Hitch | CAT II / III |
| Min. Hitch Lift Capacity | 4,000 lbs. (1,818.18 kg) |
| PTO Type | 1000 RPM, 1 3/8” Dia. Shaft With 21 Splines |
| Min. Hydraulic Output | 8 gpm at 1800 psi (46 lpm x 10,345 kPa) |
| Hydraulic Remote Controls | 2 Double-Acting Control Valves with Quick Coupler Outlets |
| Tractor Weight | Must be of equal or greater weight than that of a 2100 BALEBUSTER and 1 Bale |
| SMV Sign | Standard Equipment |
| Road Lights | Standard Equipment |
