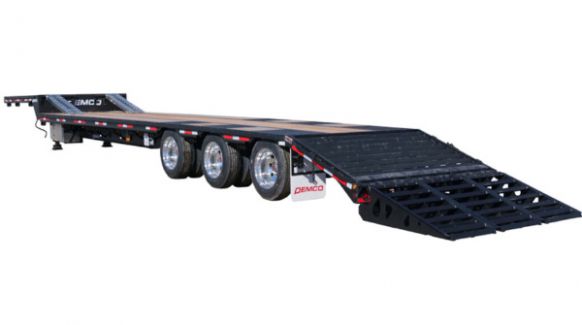

Demco Triple Axle Drop Deck Trailers

Double tap to zoom



Features

  • Tri-Axle has standard Air Ride Suspension
  • 22.5K Arvin Meritor triple axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims 77,500 lbs. GVW
  • Kingpin setting of 24”
  • Holland Atlas 55 series with 2 speed landing gear
  • Rubber mounted LED lights
  • Sealed wiring system w/ 7-way receptacle – designed by Truck-Lite™ for Demco
  • Midship turn signals on all trailers
  • Color coded air lines
  • Steel hand sanded/Phosphate washed for superior paint adhesion
  • All exterior mating surfaces are caulked prior to paint
  • Diamond Vogel polyurethane primer and paint (black)
  • Stake pockets and pipe spooling at 9” intervals
  • Rub rail of 2” x 3/8” flat steel
  • 1-1/8” x 7” Apitong flooring
  • Winch track (driver side)
  • Anti-sail mud flaps
  • D.O.T. approved conspicuity tape
  • Manifest holder



OPTIONS

  • Air Ride 3 Axle Manual Dump Valve
  • Air Ride 3 Axle Electric Dump Valve
  • Air Ride Scale
  • Kingpin setting of 18"
  • ABS Installed on 2nd Axle
  • Polished Aluminum Rims
  • 255/70R 22.5 LRH Import Radial Tires
  • 255/70R 22.5 LRH Domestic Radial Dunlap SP160 Tires
  • Sliding Winches
  • Aluminum Toolbox
  • Front Bulkhead (Removable)
  • Custom Paint Color (Red, Grey, White, Blue)

Specifications

Model Number Trailer Description Tare Weight (lbs) Closed Axle 10:1 Spread Axle Triple Axle
DD48-3 48' Triple Axle 12,840 N/A N/A yes
DD53-3 53' Triple Axle 13,720 N/A N/A yes
DD48-5-3 48' Triple Axle + 5' Beaver Tail with Twin Ramps 15,130 N/A N/A yes

Specifications

Main Beams Designed with Camber - built in Spencer facility
Web 1/4" high grade 100,000 yield steel
Flange 3/8" x 5" high grade 100,000 yield steel
Cross Members 4" x 3.2# 80,000 yield Jr. I-beam on 16" centers
Side Rails 6" x 8.2# structural C channel
Brake Size 16.5" x 7"
Upper Deck Length 11'
Lower Deck Height 40-3/4"
Transition Drop from Upper to Lower Deck 19.5"
Overall Width 102"
