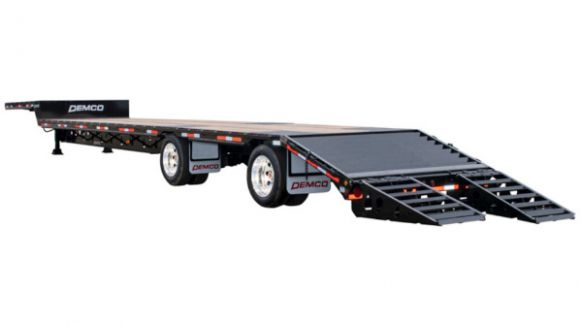

Demco Tandem Axle Drop Deck Trailers + 5' Beaver Tail with Twin Ramps
Steel Drop Deck Trailers Tandem Axle Drop Deck Trailers + 5' Beaver Tail with Twin Ramps
Overview:
The sloped, 5 foot ramp extension on our beaver tail drop deck trailers makes equipment and heavy loads easier to maneuver on and off the trailer. Ranging from 45 feet to 53 feet, each beaver tail trailer comes with twin ramps, with optional 3rd ramp, that will make loading heavy equipment and vehicles even easier and safer.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 3-leaf heavy duty SAF Holland spring suspensions
- 22.5K Arvin Meritor axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims 68,000 lbs. GVW
- Twin spring assist ramps
- Kingpin setting of 24”
- Holland Atlas 55 series with 2 speed landing gear
- Rubber mounted LED lights
- Sealed wiring system w/ 7-way receptacle – designed by Truck-Lite™ for Demco
- Midship turn signals on all trailers
- Color coded air lines
- Steel hand sanded/Phosphate washed for superior paint adhesion
- All exterior mating surfaces are caulked prior to paint
- Diamond Vogel polyurethane primer and paint (black)
- Stake pockets and pipe spooling at 9” intervals
- Rub rail of 2” x 3/8” flat steel
- 1-1/8” x 7” Apitong flooring
- Winch track (driver side)
- Anti-sail mud flaps (Demco logo)
- D.O.T. approved conspicuity tape
- Manifest holder
OPTIONS
- Air Ride 2 Axle Manual Dump Valve
- Air Ride 2 Axle Electric Dump Valve or 1-2 Axle Electric Dump Valve
- 3rd spring assist ramp
- Kingpin setting of 18"
- ABS Installed on 2nd Axle
- Polished Aluminum Rims
- 255/70R 22.5 LRH Import Radial Tires
- 255/70R 22.5 LRH Domestic Radial Dunlap SP160 Tires
- Sliding Winches
- Aluminum Toolbox
- Front Bulkhead (Removable)
- Custom Paint Color (Red, Grey, White, Blue)
Specifications
| Model Number | Trailer Description | Tare Weight (lbs) | Closed Axle | 10:1 Spread Axle | Triple Axle |
| DD40-5 | 40' Tandem Axle + 5' Beaver Tail with Twin Ramps | 11,980 | yes | N/A | N/A |
| DD43-5 | 43' Tandem Axle + 5' Beaver Tail with Twin Ramps | 12,420 | yes | yes | N/A |
| DD45-5 | 45' Tandem Axle + 5' Beaver Tail with Twin Ramps | 12,640 | yes | yes | N/A |
| DD48-5 | 48' Tandem Axle + 5' Beaver Tail with Twin Ramps | 12,880 | yes | yes | N/A |
Specifications
| Main Beams | Designed with Camber - built in Spencer facility |
| Web | 1/4" high grade 100,000 yield steel |
| Flange | 3/8" x 5" high grade 100,000 yield steel |
| Cross Members | 4" x 3.2# 80,000 yield Jr. I-beam on 16" centers |
| Side Rails | 6" x 8.2# structural C channel |
| Brake Size | 16.5" x 7" |
| Upper Deck Length | 11' |
| Lower Deck Height | 40-3/4" |
| Transition Drop from Upper to Lower Deck | 19.5" |
| Overall Width | 102" |
