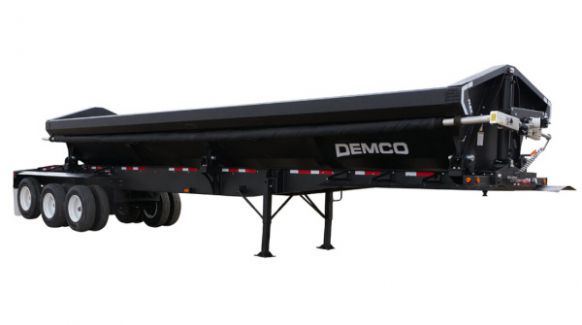

Demco Triple Axle Side Dump Trailers
Side Dump Trailers Triple Axle Side Dump Trailers
Overview:
The smooth action of these triple axle side dumps is paired with sturdy air or spring suspension with Wabco ABS brakes. The low center of gravity makes these side dumps easier to drive and manage as well. You can choose from a variety of options in addition to these features, such as standard feature trademark FlexCorner® design.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Low center of gravity for stability
- Massive Single G-Rail
- Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
- Single Sided Dump Change
- Quick Left to Right Dump Change
- Dump Direction Indicators
- 20" Deep I-beam Chassis Frame
- Rounded Vee Dump Body Design
- EdgeFlex Fenders
- Bolt-On UnderRide
- Brake size: 16.5” x 7”
- Large Body Side Stiffener, Maintain 102" Loaded
- 20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow
- 77-1/2" Track w/ABS on one Axle (23K#)
- LED Lighting
Specifications
| Model Number | Chassis Length (Feet) | Suspension Type | Tub Length (Feet) | Tub Volume (Cu. Yd.) | Tare Weight (lbs) | Lift Type | Manual P/N |
| 9CCR353AR3021 | 35 | Air Ride | 30 | 20.1 | 16,500 | N/A | 8C000301 |
| 9CCR403AR3424 | 40 | Air Ride | 34 | 22.7 | 17,000 | N/A | 8C000301 |
| 9CCR423AR3424 | 42 | Air Ride | 34 | 22.7 | 17,500 | N/A | 8C000302 |
| 9CCR423ARRL3424 | 42 | Air Ride | 34 | 22.7 | 17,500 | Rear Lift | 8C000302 |
| 9CCR443AR3424 | 44 | Air Ride | 34 | 22.7 | 17,900 | N/A | 8C000302 |
| 9CCR443ARRL3424 | 44 | Air Ride | 34 | 22.7 | 17,900 | Rear Lift | 8C000302 |
| 9CCR443AR3726 | 44 | Air Ride | 37 | 24.5 | 17,900 | N/A | 8C000303 |
| 9CCR443ARRL3726 | 44 | Air Ride | 37 | 24.5 | 17,900 | Rear Lift | 8C000303 |
| CR463ARRL3424 | 46 | Air Ride | 34 | 22.7 | 18,000 | Rear Lift | 8C000304 |
| CR473ARRLS3726 | 47 | Air Ride | 37 | 24.5 | 18,200 | Rear Lift Steer | 8C000306 |
| 9CCR443AR603424 | 44 | Air Ride | 34 | 22.7 | 17,500 | 60' Spread | 8C000305 |
| 9CCR443AR60RL3424 | 44 | Air Ride | 34 | 22.7 | 17,500 | 60' Spread w/ RL | 8C000305 |
| 9CCR443ARSPRD3424 | 44 | Air Ride | 34 | 22.7 | 17,500 | Spread w/ RL | N/A |
| 9CSS3536LS | 35 | Spring Ride | 30 | 20.1 | 16,500 | N/A | 8C000307 |
| 9CSS4036LS | 40 | Spring Ride | 34 | 22.7 | 17,000 | N/A | 8C000307 |
| 9CSS4236LS | 42 | Spring Ride | 34 | 22.7 | 17,500 | N/A | 8C000307 |
| 9CSS4436LS | 44 | Spring Ride | 34 | 22.7 | 17,900 | N/A | 8C000307 |
SPECIFICATIONS
- Air Ride: SAF Holland CBX23-245 Air Suspension with Integrated Axles
- Spring Ride: 3-leaf heavy duty SAF Holland spring suspension
- 23K Axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims, 75,000 lbs. GVW
- 5" Dia. Dump Cylinder 43K# Payload @2250 psi
- 1/4" AR450 Steel with trademarked FlexCorner® Design
OPTIONS
- 6” Dia. Dump Cylinder 62K# Payload @2250 psi
- ¼” FLX-500 Tub with Original FlexCorner Design
- Black, White, Yellow, or Custom Paint Color
- ABS Installed on 2nd Axle
- Lead Trailer Pintle Hook
- Air Weigh Scale Kit
- Bolt-On Extended Push Block
TIRE & RIM OPTIONS
- 11R 22.5 LRH Domestic Radial Tires or Import Radial Tires *
- 385/65R 22.5 LRJ Domestic Radial Tires or Import Radial Tires *
- All Polished Aluminum Rims *
- Outside Polished Aluminum Rims, Inside Steel Rims *
TARP OPTIONS
- Black Mesh Tarp (Roll-Rite or Aero)
- Tarp Lock-Out Kit (with Electric over Hydraulics ONLY)
LIFTS
- * 11R 22.5 and 11R 24.5 - Lifts can be dual (4) or single (2) tires.
- ** 385/65R 22.5 - Lifts can only be single (2) tires. Lifts with steer cannot use these tires.
- *** 385/65R 22.5 - Aluminum Rims ONLY
