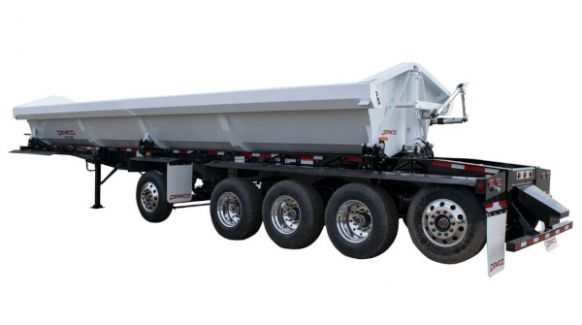

Demco Quint Axle Side Dump Trailers
Side Dump Trailers Quint Axle Side Dump Trailers
Overview:
AIR RIDE SUSPENSION
Maximum maneuverability and stability is offered by our quint axle trailers. With our Twin 20” deep I beams and hour glass cross members for built in flexibility and a rounded dump body design, these quint axle side dumps can hold a wide variety of loads and dump them with optimal clean-out efficie... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- Low center of gravity for stability
- Massive Single G-Rail
- Six Integrated Tub Pivot Points with Greaseless Pivot Bearings
- Single Sided Dump Change
- Quick Left to Right Dump Change
- Dump Direction Indicators
- 20" Deep I-beam Chassis Frame
- Rounded Vee Dump Body Design
- EdgeFlex Fenders
- Bolt-On UnderRide
- Brake size: 16.5” x 7”
- Large Body Side Stiffener, Maintain 102" Loaded
- 20 Sec. Dump Time (30 Sec. Cycle) @33 GPM Hydraulic Flow
- 77-1/2" Track w/ABS on one Axle (23K#)
- LED Lighting
Specifications
| Model Number | Chassis Length (Feet) | Suspension Type | Tub Length (Feet) | Tub Volume (Cu. Yd.) | Tare Weight (lbs) | Lift Type | Manual P/N |
| 9CCR445AR3726 | 44 | Air Ride | 37 | 24.5 | 20,800 | Front Lift Steer & Rear Lift | 8C000001 |
| 9CCR445ARFLSRLS3726LS | 44 | Air Ride | 37 | 24.5 | 20,800 | Front Lift Steer & Rear Lift | 8C000001 |
SPECIFICATIONS
- Air Ride: SAF Holland CBX23-245 Air Suspension with Integrated Axles
- 23K Axles with Wabco ABS brakes (single axle) and 10 bolt hub piloted steel rims, 75,000 lbs. GVW
- 5" Dia. Dump Cylinder 43K# Payload @2250 psi
- 1/4" AR450 Steel with trademarked FlexCorner® Design
OPTIONS
- 6” Dia. Dump Cylinder 62K# Payload @2250 psi
- ¼” FLX-500 Tub with Original FlexCorner Design
- Black, White, Yellow, or Custom Paint Color
- ABS Installed on 2nd Axle
- Lead Trailer Pintle Hook
- Air Weigh Scale Kit
- Bolt-On Extended Push Block
TIRE & RIM OPTIONS
- 11R 22.5 LRH Domestic Radial Tires or Import Radial Tires *
- 385/65R 22.5 LRJ Domestic Radial Tires or Import Radial Tires *
- All Polished Aluminum Rims *
- Outside Polished Aluminum Rims, Inside Steel Rims *
TARP OPTIONS
- Black Mesh Tarp (Roll-Rite or Aero)
- Tarp Lock-Out Kit (with Electric over Hydraulics ONLY)
LIFTS
- * 11R 22.5 and 11R 24.5 - Lifts can be dual (4) or single (2) tires.
- ** 385/65R 22.5 - Lifts can only be single (2) tires. Lifts with steer cannot use these tires.
- *** 385/65R 22.5 - Aluminum Rims ONLY
