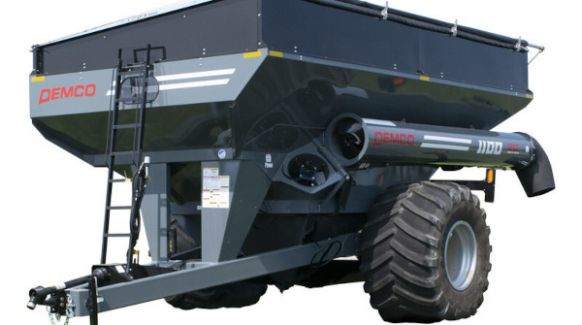

Demco 1000 & 1100 Grain Cart
Single Auger Grain Carts 1000 & 1100 Grain Cart
Overview:
The 1000 & 1100 Single Auger grain carts include a 20" balanced auger to move grain faster.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 1 ¾ - 1000 RPM PTO
- Protect auger driver and tractor PTO with the automatic reset “cut-out” clutch with overrunning clutch
- Adjustable austempered cast hitch fits category 4 or 5 hammer strap tractor drawbar
- High visibility - reflective decals
- LED Tail, flasher/turn signal lights, and auger spotlight for nighttime operation
- Tube and truss design - adjustable axle
- Welded box construction with silicone sealed seams resists rust and corrosion
- Heavy-duty spindles and hubs
Auger
- 20” diameter balanced auger with 3/8” flighting and Posi-Drive connection
- UltraFlyte made with 1008/1010 high carbon steel including a thicker outer edge, resulting in up to 50% longer wear and faster conveying
- Forward reach auger for optimum operator visibility
- 2 stage unload auger folding cylinder
OPTIONS
- Roll top tarp
- Ergonomic pendant control
- Scale kits
- Hydraulic Drive Kit - High Speed/Torque
- Camso Track System
- 1000 SA - 70 Series
- 1100 SA - 70 or 100 Series
- Soucy Hub Mount Track System
HYDRAULICS NOTES:
- A standard grain cart requires three hydraulic remotes.
- Optional Pendant Control manages slide gate, folding auger and adjustable spout. Requires one hydraulic remote.
- 70 GPM max oil flow is required for high speed high torque hydraulic unloading drive.

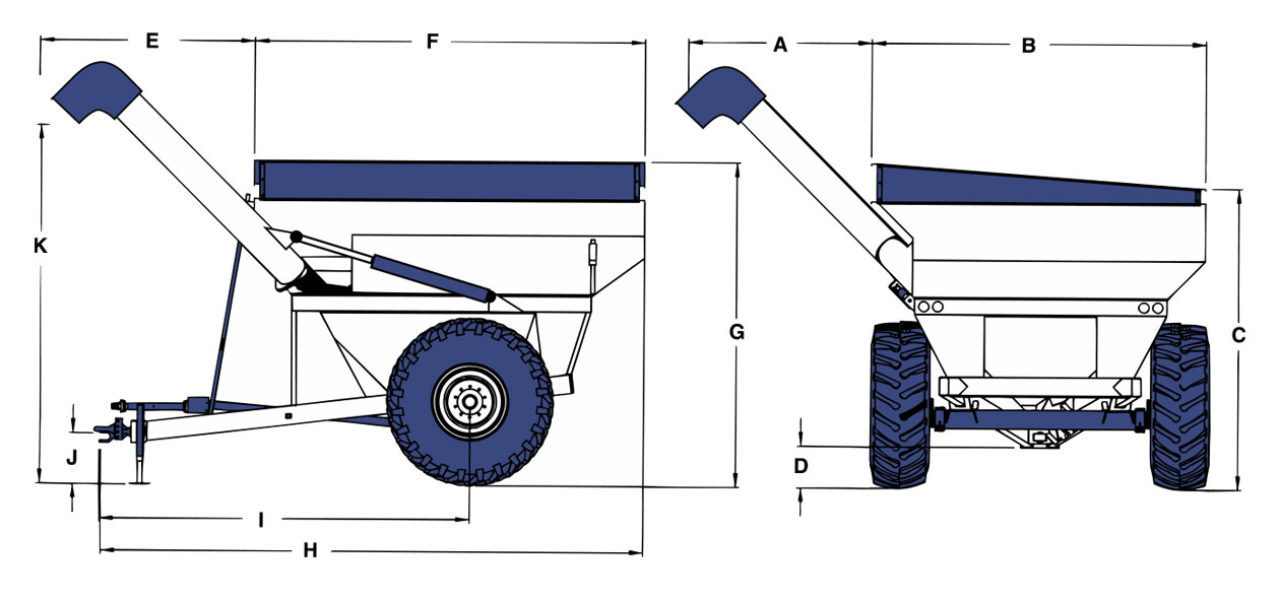

Specifications
| Grain Cart Specifications | 1000 | 1100 |
| Level Full Capacity | 1000 Bushels | 1100 Bushels |
| Heaped Full Capacity | 1100 Bushels | 1200 Bushels |
| Balanced Auger Size | 20" | 20" |
| Unloading Time (bu/min.) | 530 | 530 |
| Spindle Size | D=4 1/2" S=5 1/2" | D=4 1/2" S=5 1/2" |
| Tractor HP Required | 175+ | 175+ |
| Hub Size | 10 bolt - 13.19" | 10 bolt - 13.19" |
| Tread Width (stand.) | w/ 900 tires: 13'5" | w/ 900 tires: 13'5" |
| w/ 1050 tires: 15' | w/ 1050 tires: 15' | |
| Tongue Weight (empty) | 1180 lbs | 1210 lbs |
| Tongue Weight (loaded) | 4500 lbs (estimated) | 4725 lbs |
| Total Weight: Wheels/Tires and Tarp | 12,920 lbs (estimated) | 13,110 lbs |
| Total Weight: Wheels/Tracks and Tarp | 19,200 lbs (estimated) | 19,300 lbs |
| Rear Ground Clearance | 16" | 16" |
