Demco 500 Gallon Big Wheel Sprayers
Field Sprayers 500 Gallon Big Wheel Sprayers
Overview:

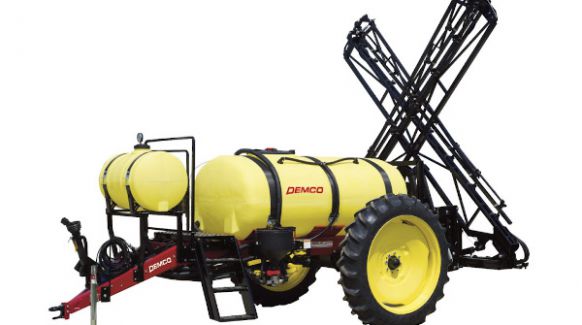

Demco's 500 Gallon Big Wheel Sprayer with a 45’ or 60’ boom has a 500 gallon polyethylene elliptical tank with two dual jet agitators.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
SMALLER CAPACITY FIELD SPRAYER.
Demco’s 500 gallon trailer sprayer has a proven, time-tested design. Available with many different boom and pump options, as well as many accessories, Demco’s 500 gallon trailer sprayer can be configured for your application requirements.
If you need a smaller capacity field sprayer, you need to look at Demco!
FEATURES
- 500 gallon polyethylene elliptical tank with two dual jet agitators, sump, baffle and 16" fliptop manway.
- 10 gauge formed steel trailer with ground clearance of 29".
- Axle configuration allows 62"- 120" infinite wheel spacing.
- 11.2 x 38 bias 6 ply tires provide a large narrow footprint with less field compaction.
- Constant velocity PTO shaft or hydraulic driven centrifugal pump.
- The hydraulic X-fold boom features independent wing leveling and independent wing folding. The X-fold boom transports at 10' 8"
- All booms have stainless steel boom and hose clamps.
- Height adjusment - 2' of travel.
NOTE: Sprayer is less spray tips. Factory set up is standard
Specifications
OPTIONS
Tank/Trailer Frame Assembly
| Part Number | Description |
| 9411027-10 | 500 Gallon Tank and Big Wheel Trailer (62" - 120" wheel spacing) (Red) |
Pumps
| Part Number | Description |
| C1700D | Hypro® 5 Roller Pump |
| 9425015 | Hypro® Gear Drive Pump with Constant Velocity PTO Shaft (C9016 540) |
| 9425026 | Hypro® Belt Drive Pump with Constant Velocity PTO Shaft (C9403 540S) |
| 9425056 | Hypro® Hydraulic Pump (C9303HM1)(hoses included) |
| 9425055 | Ace Belt Drive Pump with Constant Velocity PTO shaft (PTOC600 10B150) |
| 9425057 | Ace Hydraulic Pump (FMC150HYD206) (hoses included) |
Plumbing / Pump Mount
| Part Number | Description |
| 9425002 | Roller Pump Kit (Manual Controls included) |
| 9425020 | Hypro® Gear Drive Centrifugal Kit |
| 9425010 | Hypro®/Ace Belt Drive Centrifugal Kit |
| 9425011 | Hypro®/Ace Hydraulic Centrifugal Kit |
Controls
| Part Number | Description |
| 9428139 | Manual Controls for Centrifugal Pumps |
| 9428062 | Solenoid Valves for Centrifugal Pumps |
| 9428090 | Motorized Ball Valves for Centrifugal Pumps |
| 9428043 | Raven® 450 Sprayer Control w/Motorized Ball Valves for Centrifugal Pumps |
Hydraulic X-Fold Boom without Plumbing
| Part Number | Description |
| 9488125 | 45' Hydraulic X-Fold Boom with weight transfer kit |
| 9488127 | 60' Hydraulic X-Fold Boom with weight transfer kit |
X-Fold Boom Accessories
| Part Number | Description |
| 9428024 | TeeJet® Drip Free (27 Nozzles) for 45' Hydraulic X-Fold Boom |
| 9428026 | TeeJet® Drip Free (37 Nozzles) for 60' Hydraulic X-Fold Boom |
| 9428046 | TeeJet® Triple Drip Free (27 Nozzles) for 45' Hydraulic X-Fold Boom |
| 9428008 | TeeJet® Triple Drip Free (37 Nozzles) for 60' Hydraulic X-Fold Boom |
| 9488012 | Wheel Assisted Boom Tip Protectors |
| 9428084 | Light Kit |
Accessories
| Part Number | Description |
| CPTK1 | Quick Refill (utilizes nurse tank transfer pump for refilling) |
| DFS55HP | 55 Gallon Water Tank and Mountings for Flushing the Sprayer Tank |
| 9428156 | 33 Gallon Foam Marker |
| 9428165 | 9428165a |
| 9428002 | Fence Line Spray Kit, Electric |
| 9428003 | Fence Line Spray Kit, Manual |
| 9428068 | Feeder Line Filter Kit (60 mesh) |
| DBHG | Handgun (includes 25' of 1/2" hose) |
