Demco 80 Gallon

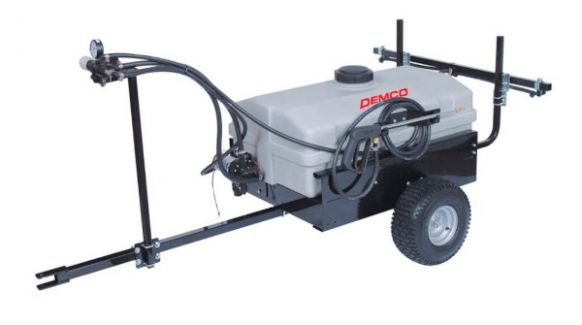

ATV/UTV Pull Behind Sprayer 80 Gallon
Overview:
The 80 gallon sprayers can be purchased as a skid mount, rear mount or trailer mount with gas or electric pumps. These are available with 80" to 18' booms or rear fold booms with an option of in-cab control console to easier control your pump and boom.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
SUPERIOR PRODUCT CLEANOUT
Demco's 80 gallon Pro Series sprayers are available in a variety of applications. These sprayers can be purchased as a skid mount, rear mount or trailer mount with gas or electric pumps. They are also available with 80" to 18' booms or rear fold booms. A new option for our 60 and 80 gallon sprayers is an in-cab control console making it easier to control your pump and boom. These versatile sprayers are not “off the shelf” mass produced sprayers. If you are serious about getting your spraying done right and want a high quality sprayer, you need to seriously look at Demco Pro Series sprayers.
Our Pro Series sprayers have a molded-in baffle in the tank for excellent agitation, along with a deep sump for uninterrupted application and superior product clean-out. No corners are cut on the construction of our sprayer frames and booms. We know sprayers and we know how to deliver quality.
- 80 gallon tank with a sloped bottom sump for total drainage, 5" fillwell, and 1 1⁄4" outlet.
- Gallon and liter markings on the tank.
- Agitation standard on all tanks.
- Special molded-in baffling in bottom of tanks for enhanced agitation.
- Pocket on top side of tank for extra chemical or fresh water jug.
- Rugged 12 gauge formed steel skid frame.
- 18 x 9.50 flotation tires on silver rims for trailer models.
- Electronic, diaphragm pump with Viton® valves will deliver 5 GPM. Draws 9 amps at 20 PSI.
- 3 HP Honda® engine with centrifugral pump will deliver 12 GPM @ 50 PSI - 65 PSI maximum pressure.
- 3.5 HP Briggs and Stratton engine with C4101GE pump delivering
- 6 GPM at 2600 RPM and 50 PSI. 150 PSI max.
- 4 HP Honda® with “Silver Cast” pump (XL4101).
- Hypro® 6 roller PTO pump (C6500D) will deliver 8 GPM at 540 RPM and 50 PSI. 150 PSI max.
- Handgun with 15’ hose (380RB).
- 80” spray boom with 2 nozzles (AN1.5), 12’ spray boom with 4 nozzles and spring loaded boom break away or 18’ boom with 6 nozzles.
- Rear mount fits category “1” three-point.
- Skid dimensions 26.5" wide x 34" long x 39" high.
Specifications
Model & Pump
| Part Number | Description |
| 9464111 | 80 Gallon Skid with electric 5 GPM pump. Skid base is 26 1⁄2" wide x 34" deep |
| 9464067 | 80 Gallon Skid with 3.5 HP B&S engine and C4101GE pump Skid base is 26 1⁄2" wide x 34" deep |
| 9464069 | 80 Gallon Skid with 4 HP Honda® and "Silver Cast" pump (XL4101) Skid base is 26 1⁄2" wide x 34" deep |
| 9464102 | 80 Gallon Skid with Ace centrifugal pump and 3 HP Honda®engine (1-section) |
| 9464097 | 80 Gallon Skid with Ace centrifugal pump and 3 HP Honda® engine (3-section) |
| 9464079 | 80 Gallon Trailer with electric 5 GPM pump |
| 9464081 | 80 Gallon Trailer with 3.5 HP B&S engine and C4101GE pump |
| 9464083 | 80 Gallon Trailer with 4 HP Honda® and "Silver Cast" pump (XL4101) |
| 9464104 | 80 Gallon Trailer with Ace centrifugal pump and 3 HP Honda® engine (1-section) |
| 9464106 | 80 Gallon Trailer with Ace centrifugal pump and 3 HP Honda® engine (3-section) |
| 9464086 | 80 Gallon Rear Mount with electric 5 GPM pump |
| 9464088 | 80 Gallon Rear Mount with PTO 6 roller pump for 80", 12', or 18' boom (1-section) |
| 9464090 | 80 Gallon Rear Mount with PTO 6 roller pump for 21', 28', or 30' boom (3-section) |
Boom with Plumbing
| Part Number | Description |
| 80B25 | 80" Boom (2 nozzles)(40" spacing) |
| DB12 | 12' Boom (1 section)(4 nozzles)(40" spacing) |
| DB18 | 18' Boom (1 section)(6 nozzles)(40" spacing) |
| 9428147 | 2 Nozzle Boomless Kit (includes 2 FC-XT010 tips, sprays approximately 30') |
| 9428149 | 2 Nozzle Boomless Kit Roller/Centrifugal Pump (sprays approximately 30') |
| DB21TDF | 21' Truss-T boom (1 section)(13 nozzles) See Components Section for tips |
| DB30TDF | 30' Truss-T boom (1 section)(19 nozzles) |
Accessories
| Part Number | Description |
| 9428114 | Hose Reel with 50' of 3/8" hose (uses existing handgun) |
| 25660-3 | Lawn & turf gun with #3 nozzle |
| CRATE | LTL freight shipments require crating |
