Degelman PT17NT

Double tap to zoom



Features

Pin Eye Cylinders

The welded pin eye cylinder series is designed to withstand the most demanding applications on the market today. Lion’s extensive design experience has resulted in a premium rephasing cylinder with the latest in sealing and rephasing technology and standard Lion1000 induction hardened rods for the ultimate in corrosion protection and durability.

Exclusive Self-Lubricated, Zero Maintenance Bushing

These bushings, manufactured from a friction liner applied on a glass fiber structure, have excellent friction properties and improved wear resistance without external lubrication, even on high loads.

Bushing Seal

The wiper edge removes even the toughest dirt and contaminants from the pin, keeping the system running clean and at its peak performance. The metal enclosure ensures a secure fit in the open housing, preventing expulsion of the wiper, even under extreme conditions.

Oversized Electroless Plated Nickel Pin

At 2” in diameter, these high-tensile steel pins are 60% larger than any other pin on the market.

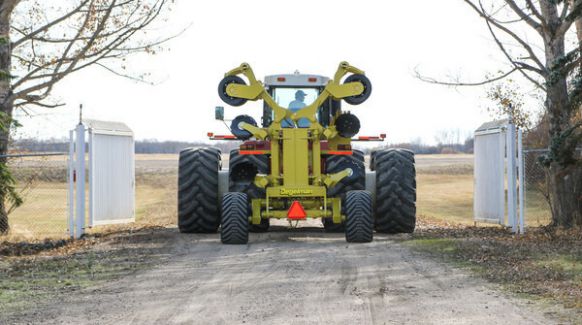

Safely Transport To & From The Field

Pro-Till is user-friendly, allowing the operator to engage the transport position from the safety of the tractor seat. The wing-forward design is incredibly compact and stable for road transport. It incorporates an ultra-low profile-under 12’ - which is ideal for clearing bridges and power lines, and  folds in less than 10 feet, making it possible to pull down narrow roads and in areas with width restrictions. The hitch weight is positive, creating a safe and highly maneuverable machine.

Specifications

Model PT17NT
Width Available 17' (5m)
Transport Height 11'-11" (3.6 m)
Transport Width 9'-10" (3 m)
Weight 14,740 lbs (6,685 kg)
Hitch Weight 4,315 lbs (1,957 kg)
Number of Discs (per-wing) 19
Disc Arm Mounting Rubber Torsion - 4 Elements per Arm
Disc Spacing 5" Overall Spacing (10" Spacing per Row)
Hitch Frame 6" x 6" x 3/8"
Main Frame 6" x 6" x 3/8"
Wing Frame 6" x 6" x 3/8"
Tires Alliance 550/45R22.5 (328HS Series)

Hubs H817 (8 Bolt)
Roller Bearings 2-7/16" Ball Bearing 6-Lip Seal
Hydraulics - Wheel/Roller Master 4-3/4" x 8" x 2" Rod, First Slave 4-1/4" x 8" x 2" Rod, Second Slave 3-3/4" x 8" x 2" Rod
Hydraulics - Transport Lift 5" x 40" x 2-1/2" Rod
Hydraulics - Wing Forward 4" x 20" x 2" Rod
Roller Size 8'-2" (2.5 m)
Hydraulic Jack Standard
Safety Lights Standard
Soil Deflector Standard
Gauge Wheels N/A
