Degelman SMP80
Features
Harrowing Becomes Light Tillage

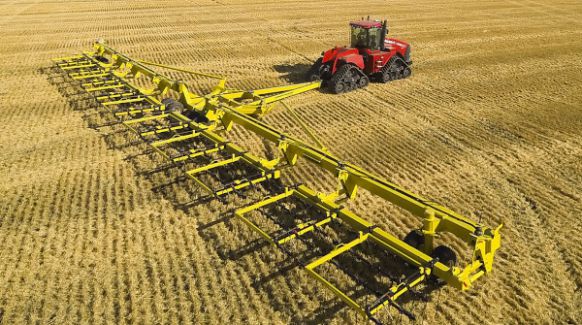

The Degelman Strawmaster Pro is a revolutionary machine designed for both straw management or light tillage applications. With 30 inch long tines placed in 4 rows, this machine is beyond any other harrow bar. The Strawmaster Pro will shatter straw, control weeds, rake flax straw, and incorporate seed and chemicals or act as light tillage.
Contouring Frame
Under float or under pressure, the harrow sections are designed for flexibility. The spring bars are positioned along the sides of the harrow frame providing an even distribution of pressure to the frame. The spring bars can then flex In response to counter pressure from the land contours with each section rising over hills and falling into hollows.
Unique Adjustment for Harrow Sections
The Strawmaster Pro is equipped with an adjusting rod and arm located on a rubber dampening system. This will allow for harrow frame sections adjustment to ensure that they are running parallel to the ground.
Patented Torsion Technology
Simply rotate the 8” x 8” beam hydraulically and apply more pressure through the spring bars. Strawmaster works the way you want it to.
Alliance Tires
The Alliance 328 HS (High Speed Flotation I-328) is designed with good selfcleaning
characteristics, which is suitable for on and off-the-road agricultural service
on trailers and implements. The high load capacity and low inflation pressure
of the tire results in high degree of agricultural soil protection, as well as low
rolling resistance on both, on and off-road uses. It’s strong nylon construction and
compounds ensure long life.
Solid Truss Autofold
The solid truss on the Strawmaster Pro allows for sharp turning while maintaining a rigid connection between the hitch and wing sections - no breaking cables. This system allows you to back up and maneuver out of tight situations.
Specifications
Model | SMP80 |
Widths Available | 80' |
Weight | 37,300 lbs |
Horsepower (min) | 400 hp |
Horsepower (ideal) | 440 hp |
Transport Hitch Weight | 3,455 lbs |
Transport Length | 64'-8" |
Harrow Sections | 8 |
Transport Width | 18' |
Transport Height | 12' |
Trailer Frame | 6" x 10" x 3/8" |
Wing Beam | 12" x 16" x 3/8" |
Section Beam | 8" x 8" x 3/8" |
Rows of Tines | 4 |
Tine Spacing | 24" Centers |
Tine Section Frame | 2" x 4" x 1/4" |
Tine Size | 5/8" x 30" Carbide Endura-Tip |
Tine Replacement | Easy Drop-Out Tine Bar |
Hydraulic Outlets | 4 |
Hydraulics - Transport | 2-1/2" x 16" x 1-1/2" Rod |
Hydraulics - Beam Lift | 4" x 24" x 2" Rod |
Hydraulics - Auto-Fold Latch | 2" x 4" x 1-1/4" Rod |
Tine Angle Adjustment | Ratchet Jack |
Adjustable Down Force | Hydraulic |
Hitch Lift | Hydraulic |
Tires | 328 High Speed Flotation 550/45 - 22.5 |
