Berlon Attachments MDGR-72

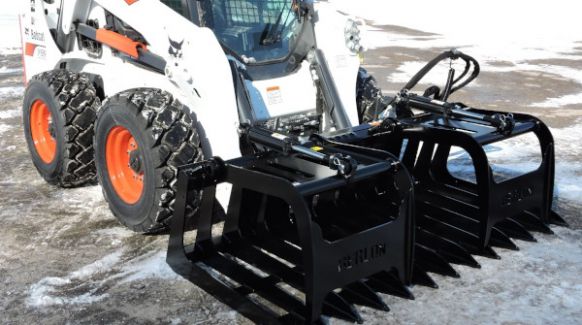

Medium Duty Grapple MDGR-72
Overview:
Common uses include: Brush clean up
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
Features
- Cylinders - 3,000 lbs., 2.5” bore
- Fully welded leading edge
- Dual, independent claws
- Scrap ends, hose & couplers, hose saver and needle valve included
Options
- Bolt-On Ends
Specifications
| Model | MDGR-72 |
| Inside Dimension (in.) | 72 |
| Outside Dimension (in.) | 73.5 |
| "A" Height (in.) | 21.5 |
| "B" Depth (in.) | 40 |
| "C" Angle (deg.) | 70 Degree Angle |
| "D" Grapple Opening (in.) | 41 |
| Weight (lbs.) | 770 |
| Space between Tines (in.) | 6 |
| Tine Thickness (in.) | 3/8 |
| HD Package | n/a |
| Includes MPUF-1 Universal mounting plate. Other options available. | |
| Recommended for 50-75HP machines and less | |
