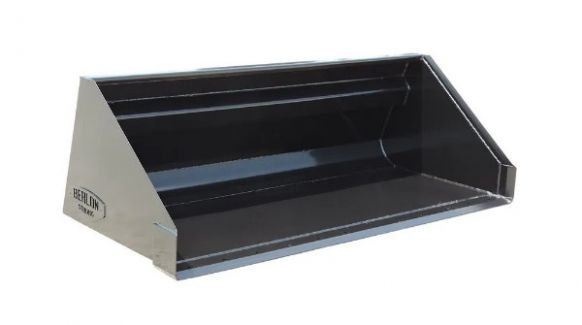

Berlon Attachments UTHB-60
Utility High-Back Bucket UTHB-60
Overview:
Common uses include: Manure, slurry, and bulky material.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 3/16” thick steel body
- 3/4” x 6” weld-on cutting edge with holes
- Radius kick-out plate for added strength and easy clean-out
- Reinforcement tube across back of bucket for added strength
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Spill Guard (Welded-On)
- Bolt-On HD Teeth (Factory Installed Only)
- Bolt-On Tooth Bar
- Bolt-On Tooth Bar, Over Bolt-On Edge
- Change back angle add $125.00
Specifications
| UTHB Series Bucket (Model No.) | UTHB-60 |
| Inside Dimensions (in.) | 60 |
| Outside Dimensions (in.) | 61.5 |
| "A" - Height (in.) | 25 |
| "B" - Depth (in.) | 36 |
| "C" - Angel (deg.) | 70 degree angle; other angles available |
| Bucket Weight (lbs.) | 462 |
| Heaped Capacity (cu. Ft.) | 20.6 |
| Wearbars (1/2"x3") | 3 |
| HP Package | Optional |
