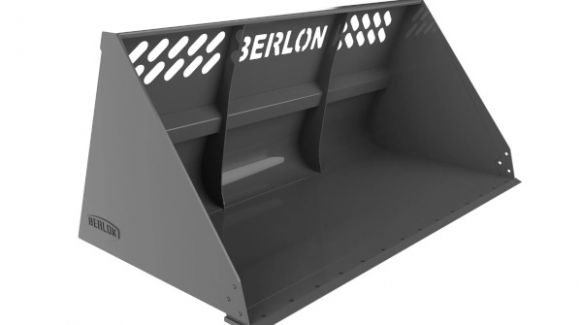

Berlon Attachments SCSB-96

Double tap to zoom



Features

  • Fully welded body
  • 1/2" x 3" wearbars
  • 3/4" x 6" cutting edge with holes
  • Radius kick-out plate for added strength & easy clean out
  • Reinforcement tube in line with the top of the mounting plate
  • Additional reinforcement tube above standard rein



Options

  • Bolt-On Cutting Edge
  • Bolt-On Rake Tooth Edge
  • Bolt-On Side Cutters
  • Poly Edge
  • Change back angle add $125.00

Specifications

SCSB SERIES MODEL SCSB-96
Inside Dimension (in.) 96
Outside Dimension (in.) 97.5
"A" Height (in.) 41
"B" Depth (in.) 46
"C" Angle (deg.) 70 Degree angle; other angles available
Weight (lbs.) 1037
Heaped Capacity (cu. Ft.) 73.4
Wear-bars (1/2" x 3") 4
Dimple Plate NO
HD Package Standard
Includes MPUF-1HD Universal Mounting plate. Other mounts available. Call for pricing.
HD Package * Includes MPUF-1HD Universal mounting plate and double reinforcement kit. Recommended for track macines and others over 75 HP.
