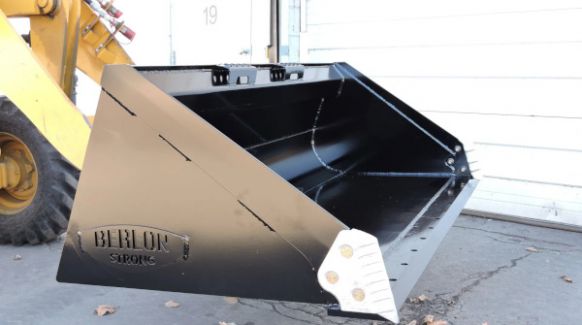

Berlon Attachments BELHD-90
Heavy Duty Extended Lip BELHD-90
Overview:
Common uses include: Excavating, landscaping,construction and general purpose.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 3” deeper than our B series bucket, for even greater cutting edge visibility
- 1/4” thick steel body3/4” x 6” weld-on cutting edge with holes
- Radius kick-out plate for added strength and easy clean-out
- Reinforcement tube across back of bucket for added strength
- Bucket bottom includes a heavy-duty dimple plate
*A Berlon Exclusive* - Bolt-on side cutters
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Spill Guard
- Bolt-On HD Teeth (Factory Installed Only)
- Bolt-On Tooth Bar
- Bolt-On Tooth Bar, Over Bolt-On Edge
- Change back angle add $125.00
Specifications
| BELHD Series Bucket (Model No.) | BELHD-90 |
| Inside Dimensions (in.) | 90 |
| Outside Dimensions (in.) | 91.5 |
| "A" - Height (in.) | 23.5 |
| "B" - Depth (in.) | 36 |
| "C" - Angel (deg.) | 70 degree angle; other angles available |
| Bucket Weight (lbs.) | 1027 |
| Heaped Capacity (cu. Ft.) | 30 |
| Wearbars (1/2"x3") | 2 |
| Dimple Plate | Yes |
| HP Package | Standard |
| Includes MPUF-2HD Universal Mounting Plate. Other mounts available. | |
| HD Package* Includes MPUF-2HD Universal mounting plate and double reinforcement kit. Recommended for track machines and others over 75HP. |
|
