Berlon Attachments FMX-90

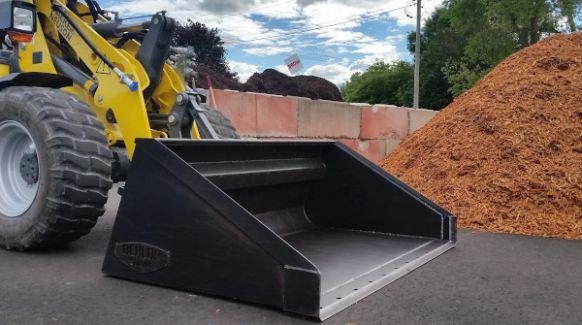

FMX Series Bucket FMX-90
Overview:
Common uses include: Feed, manure, grading, landscaping, and higher horsepower machines.
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Features
- 3/16” thick steel body
- 3/4” x 6” weld-on cutting edge with holes
- Radius kick-out plate for added strength and easy clean-out
- Reinforcement tube across back of bucket for added strength
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Spill Guard (Welded-On)
- Bolt-On HD Teeth (Factory Installed Only)
- Bolt-On Tooth Bar
- Bolt-On Tooth Bar, Over Bolt-On Edge
- Bolt-On Side Cutters (standard on FMX 84” & 90”)
- Change back angle add $125.00
Specifications
| FMX Series (Model #) | FMX-90 |
| Inside Dimensions (in.) | 90 |
| Outside Dimension (in.) | 91.5 |
| "A" Height (in.) | 25.0 |
| "B" Depth Dimension | 44.0 |
| "C" Angle (deg.) | 70 Deg. angle |
| Weight (lbs.) | 907 |
| Heaped Capacity (cu. ft.) | 40.5 |
| Wear-bars (1/2" x 3") | 2 |
| Dimple Plate | yes |
| HD Package | Standard |
