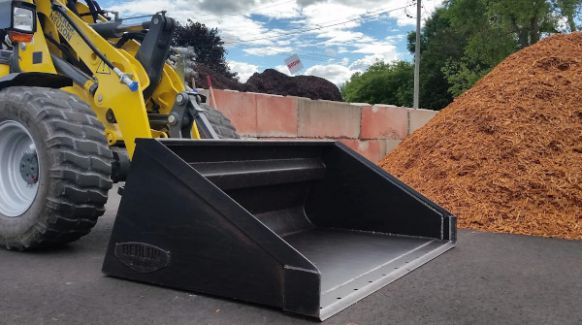

Berlon Attachments FMX-72
![](/assets/Uploads/_resampled/CroppedImage582325-berlon-fmx-72-20.jpg)
Features
- 3/16” thick steel body
- 3/4” x 6” weld-on cutting edge with holes
- Radius kick-out plate for added strength and easy clean-out
- Reinforcement tube across back of bucket for added strength
Options
- Bolt-On Cutting Edge
- Bolt-On Rake Tooth Edge
- Spill Guard (Welded-On)
- Bolt-On HD Teeth (Factory Installed Only)
- Bolt-On Tooth Bar
- Bolt-On Tooth Bar, Over Bolt-On Edge
- Bolt-On Side Cutters (standard on FMX 84” & 90”)
- Change back angle add $125.00
Specifications
FMX Series (Model #) | FMX-72 |
Inside Dimensions (in.) | 72.0 |
Outside Dimension (in.) | 73.5 |
"A" Height (in.) | 25.0 |
"B" Depth Dimension | 44.0 |
"C" Angle (deg.) | 70 Deg. angle |
Weight (lbs.) | 641 |
Heaped Capacity (cu. ft.) | 29.7 |
Wear-bars (1/2" x 3") | 4 |
Dimple Plate | no |
HD Package | optional |
