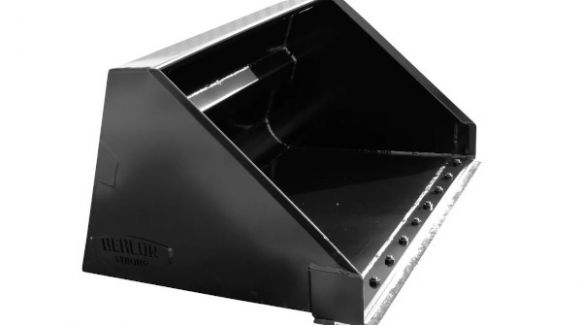

Berlon Attachments MISLMB-48

Double tap to zoom



Features

  • 3/16” thick steel body
  • ½” x 4” weld-on cutting edge with holes
  • Radius kick-out plate for added strength and easy clean-out
  • Reinforcement tube across back of bucket for added strength



Options

  • Bolt-On cutting edge
  • Mini Tooth bar

Specifications

MISLMB Series (Model #) MISLBMB-48
Inside Dimension (in.) 48.0
Outside Dimension (in.) 49.0
"A" Height (in.) 29.0
"B" Depth (in.) 39.0
"C" Angle (deg.) 70 Degree Angle
Weight (lbs.) 440
Heaped Capacity (cu. ft.) 22.0
 Wear-bars (3/8" x 3")
Dimple Plate N/A
HD Package N/A

Includes MIUNV - Universal Mini Mount
MPDG-1 and MIBOB-1 Mounts available
